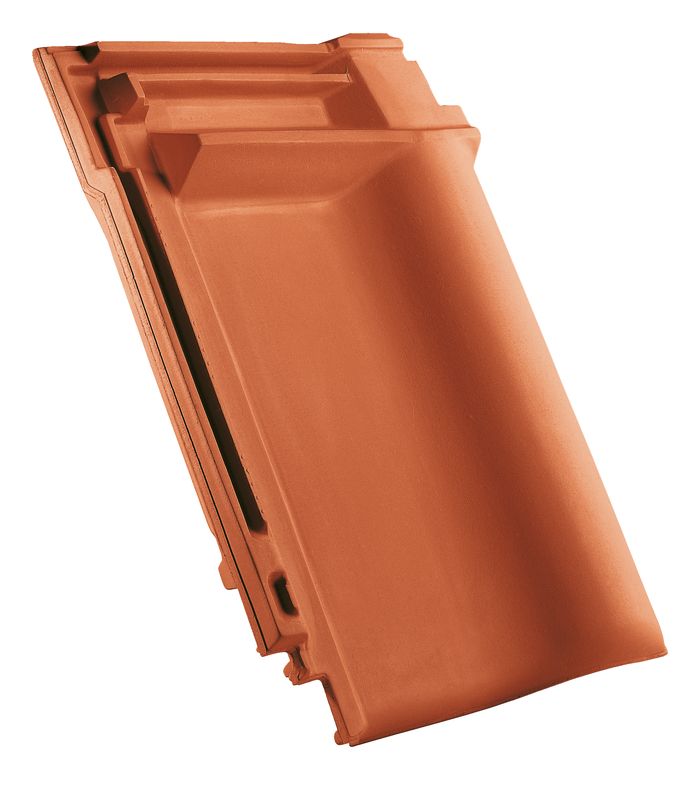

MAGNUM

De economisch verantwoorde mega grote dakpan.

  • Zeer economisch verantwoord dankzij het mega formaat
  • Samenvoegen van grootte en kwaliteit zonder compromissen door eersteklas technologie
  • Verbindingsloze dekking en optimaal stromingsgedrag
  • Drie stabiele ophangijzers zorgen voor een veilige houvast en een betrouwbare omlijsting van de daklatten
  • De plint, waterafvoer en de bijzonder gunstige cw-waarde maken de MAGNUM tot een uitstekende dakpan, die geschikt is voor zeer platte en zeer steile daken
  • De Labyrinth-techniek, met vijf speciaal gevormde en onderscheidende zijribben, voorkomt het binnendringen van regenwater, zelfs bij sterke wind

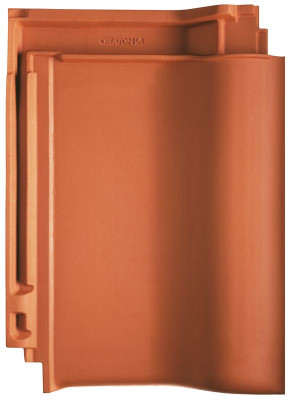

natuurrood
natuurrood
NUANCE Koperrood engobe
NUANCE Koperrood engobe
NUANCE Leikleur engobe
NUANCE Leikleur engobe
NUANCE Zwart engobe
NUANCE Zwart engobe
NUANCE Matzwart engobe
NUANCE Matzwart engobe

Technische gegevens

Size (appr.)357 x 495 mm
Minimale werkende breedte (bij benadering)295 mm
Werkende breedte bij benadering296 mm
Maximale werkende breedte (bij benadering)297 mm
Min. gauge (approx.)390 mm
Covering length on av. approx.400 mm
Max. gauge (approx.)411 mm
Minimum aantal benodigde pannen (bij benadering)8.2 pcs/m²
Gemiddelde aantal benodigde pannen (bij benadering)8.5 pcs/m²
Brickware max. approx.8.7 pcs/m²
Gewicht per eenheid (bij benadering)4.9 kg/piece
Gewicht per m² (bij benadering)41.7 kg/m²
Gewicht per bundel (bij benadering)848 kg
Pcs per mini-pack4 piece
Pcs per pallet168 piece

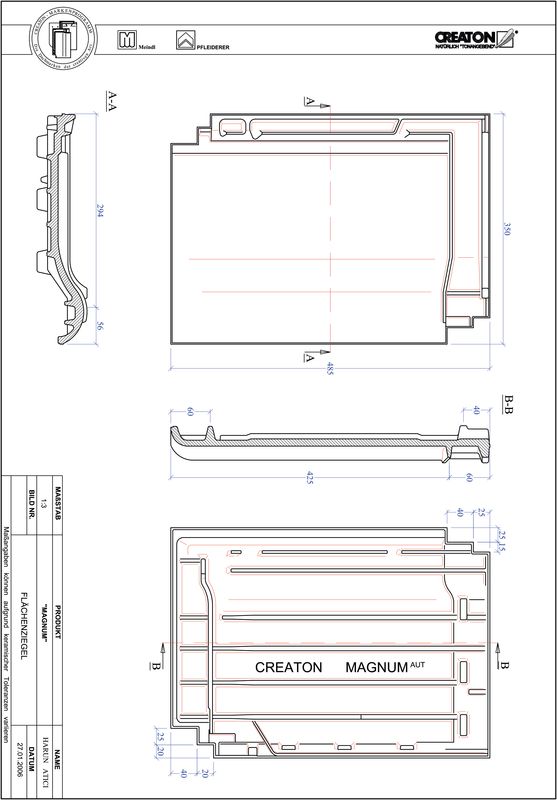

Technische tekeningen

Drawing MAGNUM roof cross-section DQF
Drawing MAGNUM roof cross-section DQF
Drawing MAGNUM verge tile left with barge board OBL
Drawing MAGNUM verge tile left with barge board OBL
Drawing MAGNUM verge tile right with barge board OBR
Drawing MAGNUM verge tile right with barge board OBR
Drawing MAGNUM verge left with verge sheet metal and double roll ODL
Drawing MAGNUM verge left with verge sheet metal and double roll ODL
Drawing MAGNUM verge right with verge sheet metal and field tile OFR
Drawing MAGNUM verge right with verge sheet metal and field tile OFR
Drawing MAGNUM shed roof version PDA
Drawing MAGNUM shed roof version PDA
Drawing MAGNUM wall connection (above) with FALZ WMF
Drawing MAGNUM wall connection (above) with FALZ WMF
Drawing MAGNUM general view GES
Drawing MAGNUM general view GES
Drawing MAGNUM distance from batten to ridge intersection point, ridge batten spacing LAF
Drawing MAGNUM distance from batten to ridge intersection point, ridge batten spacing LAF

Toepassingsdomeinen

Aanvullende maatregelen volgens de specificaties van de CREATON-fabrikant
16 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 16 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 14 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 14 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 12 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technische informatie

  • De technische tekening dient enkel als voorbeeld.
  • Volgens de regels van de Centrale Vereniging van de Duitse Dakdekkerij (ZVDH) voor gevelpannen, moet de afstand tussen de binnenrand van de gevelpan en de buitenrand van de gevelmuur of gevelbekleding minimaal 1 cm bedragen.
  • Voor de uitvoering van dakbedekkingswerkzaamheden zijn de huidige landelijke regels en normen van toepassing. Deze verschillen van land tot land (bijv.ZVDH-regels, Oostenrijkse normen) en moeten bij de uitvoering in acht worden genomen. Als fabrieksinformatie is CREATON-specifieke informatie over de uitvoering van het onderdak ook van toepassing en complementair hieraan. U vindt ze in onze Roof Planner of op www.creaton.de / www.creaton.at.
  • Please consider the sample letter for the standard CREATON roof pitches.

LAF/FLA waarden

LAF/FLA waarden in mm voor 30x50 panlatten
Vereiste nok/vorst (benadering)DN10°15°20°25°30°35°40°45°50°55°60°
PF 2.5 pcs/mLAF1101101101001001009090909090
PF 2.5 pcs/mFLA10095908070605040302010
LAF/FLA waarden in mm voor 40x60 panlatten
Vereiste nok/vorst (benadering)DN10°15°20°25°30°35°40°45°50°55°60°
PF 2.5 pcs/mLAF1101101109595958580757575
PF 2.5 pcs/mFLA1101051009080706050403020
LAF/FLA waarden in mm voor 50x50 panlatten
Vereiste nok/vorst (benadering)DN10°15°20°25°30°35°40°45°50°55°60°
PF 2.5 pcs/mLAF1051051059090857570656560
PF 2.5 pcs/mFLA12011511010090857565605050

Accessory range

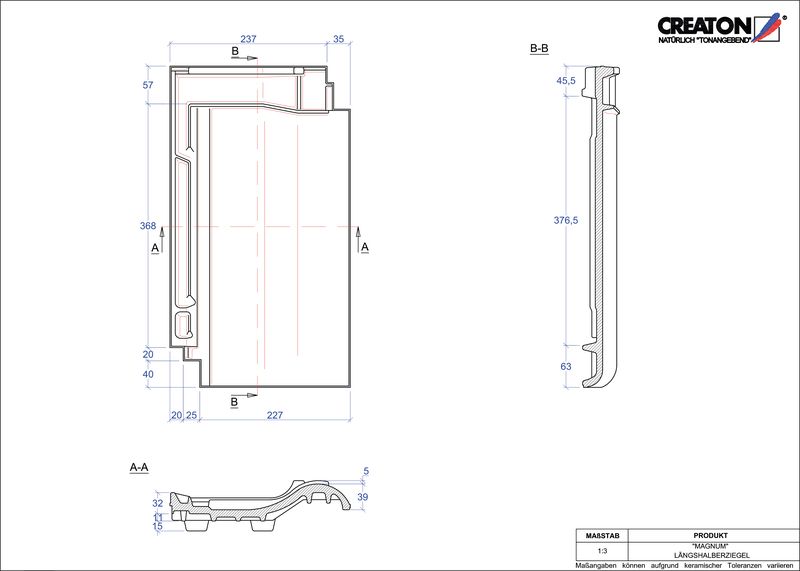

MAG half-width tile

MAG half-width tile

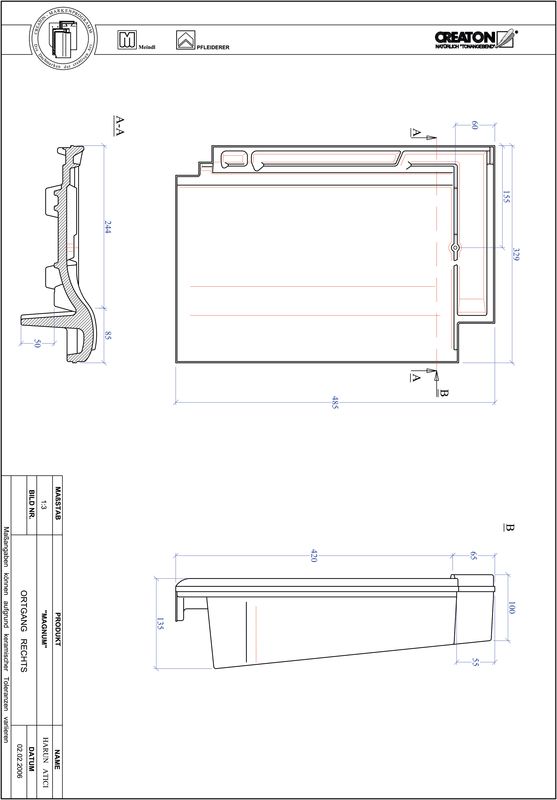

MAG verge tile right

MAG verge tile right

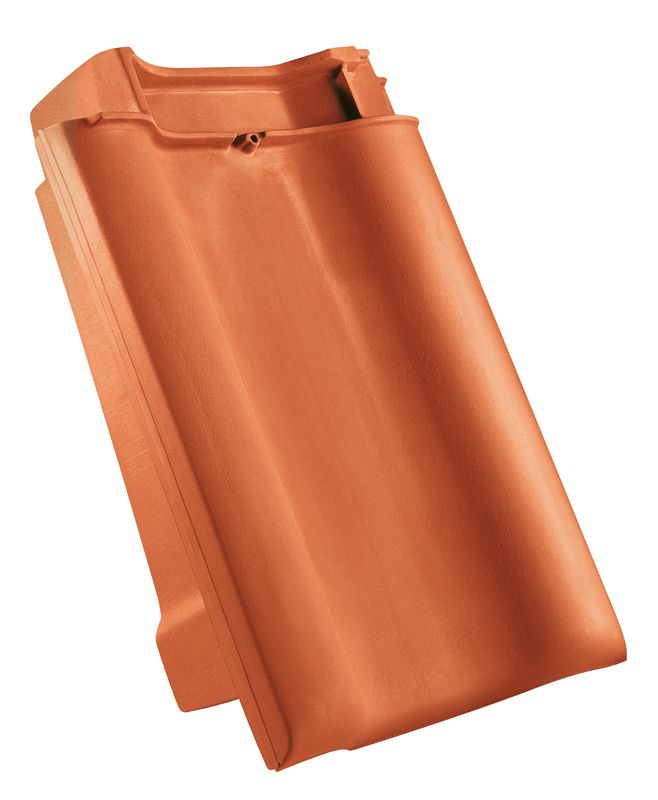

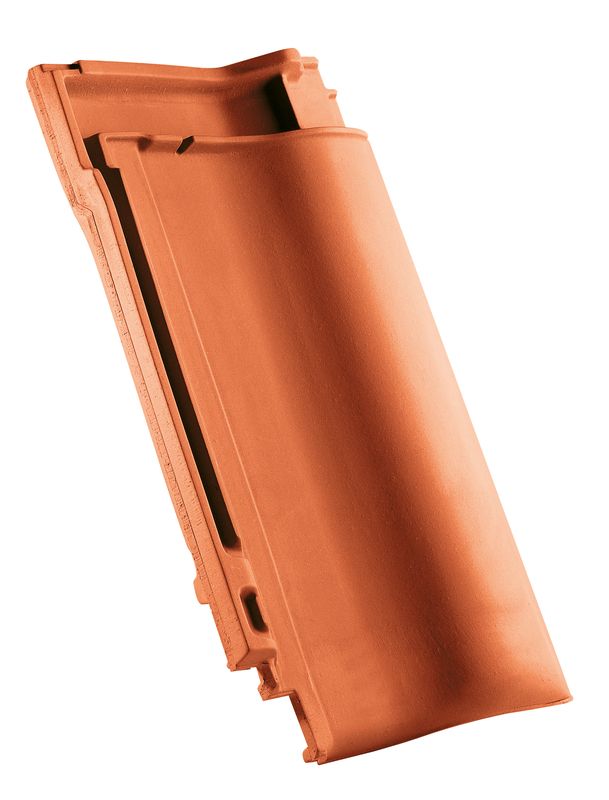

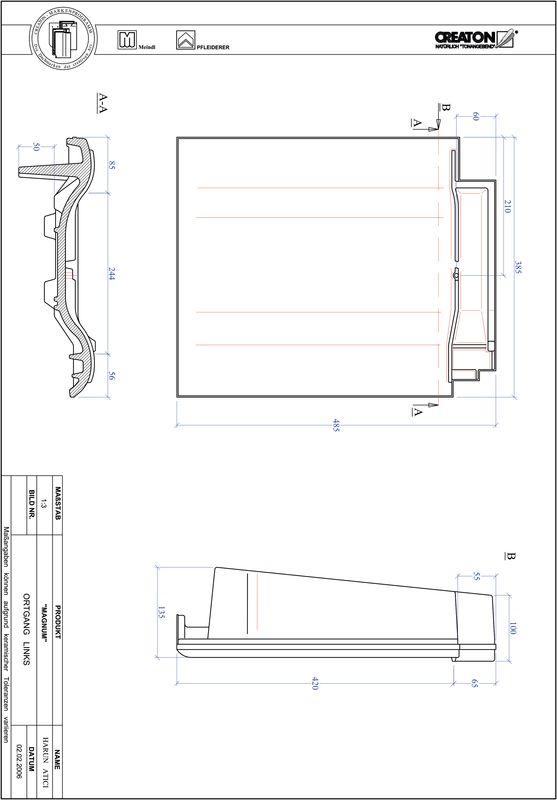

MAG verge tile left

MAG verge tile left

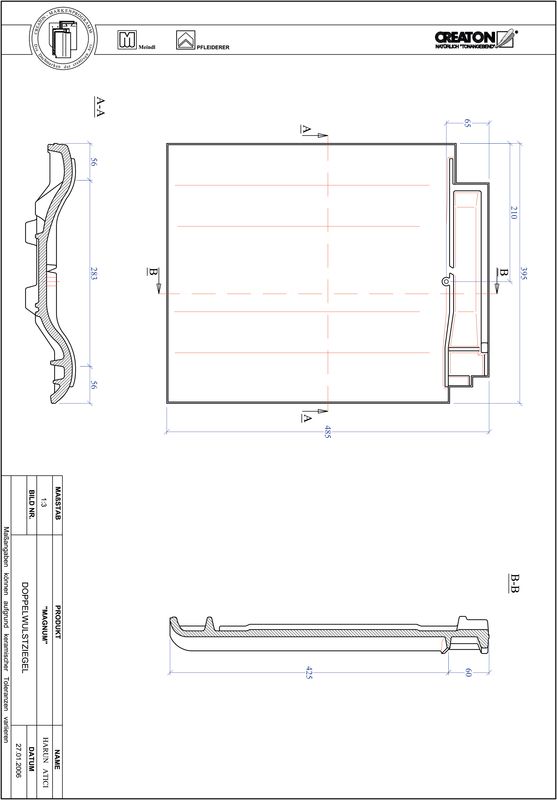

MAG double roll tile

MAG double roll tile

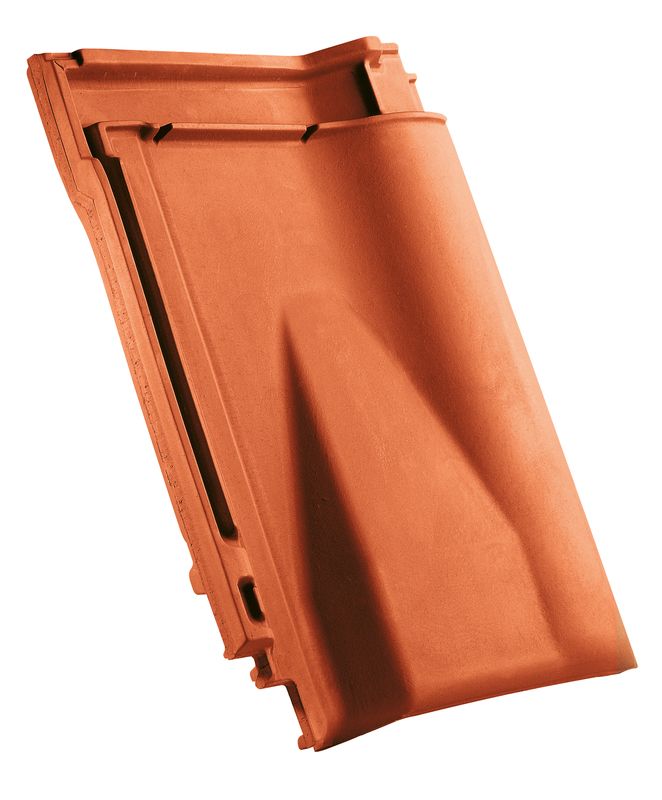

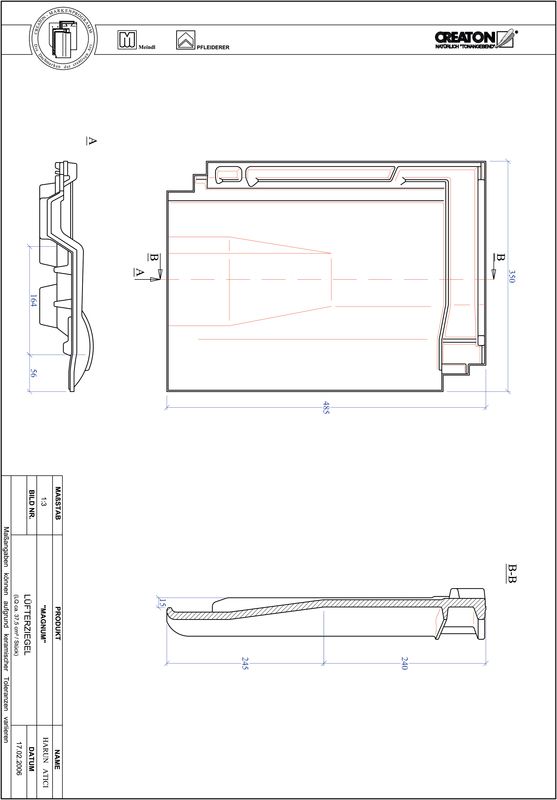

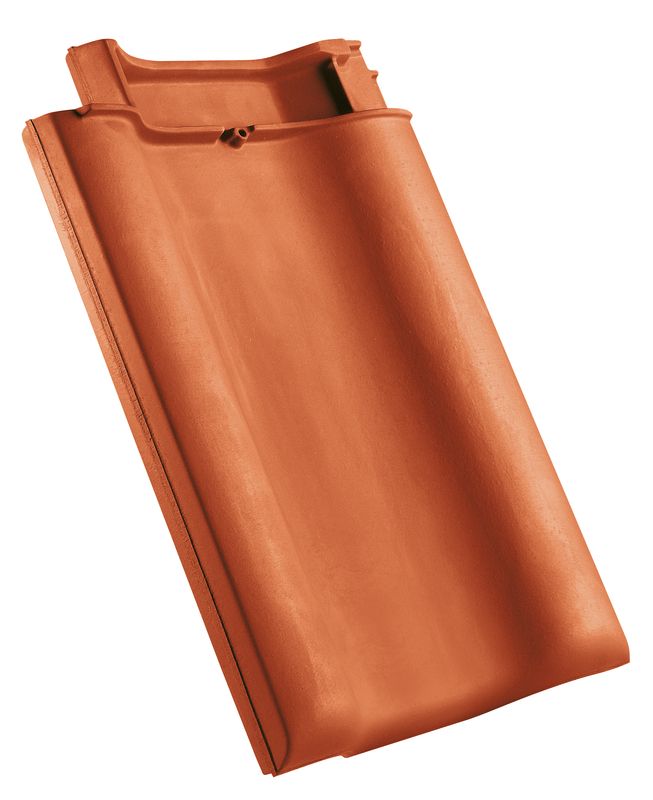

MAG ventilating tile

MAG ventilating tile

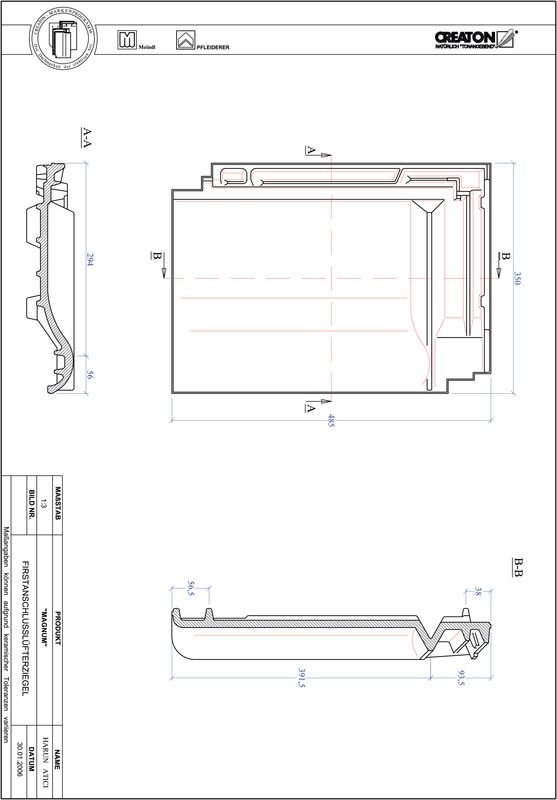

MAG ridge connection ventilating tile

MAG ridge connection ventilating tile

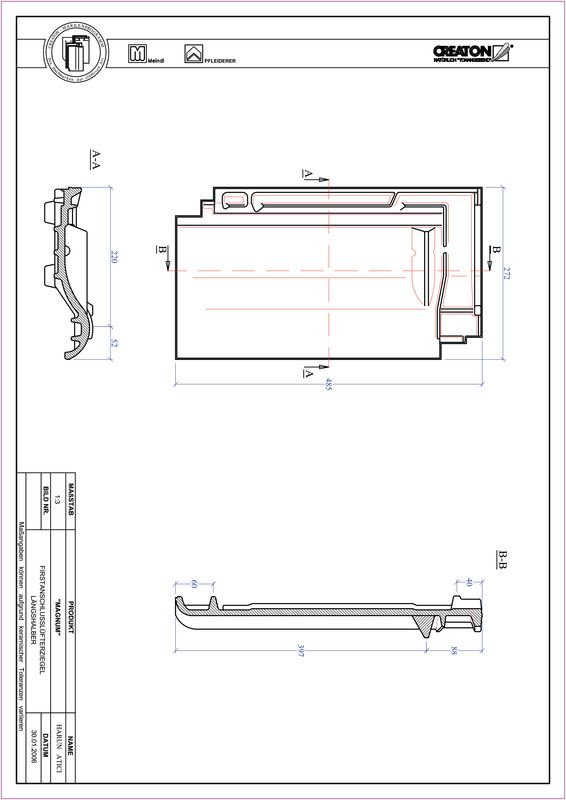

MAG ridge connection ventilating half-width tile

MAG ridge connection ventilating half-width tile

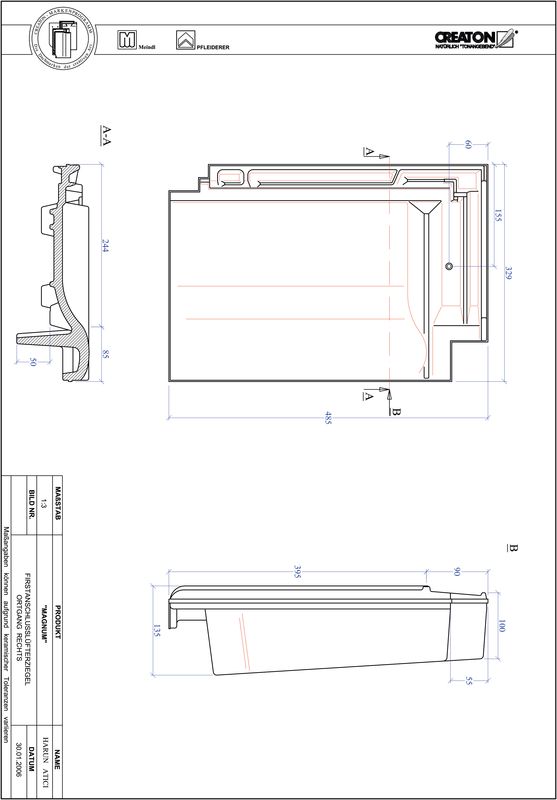

MAG ridge connection ventilating verge tile right

MAG ridge connection ventilating verge tile right

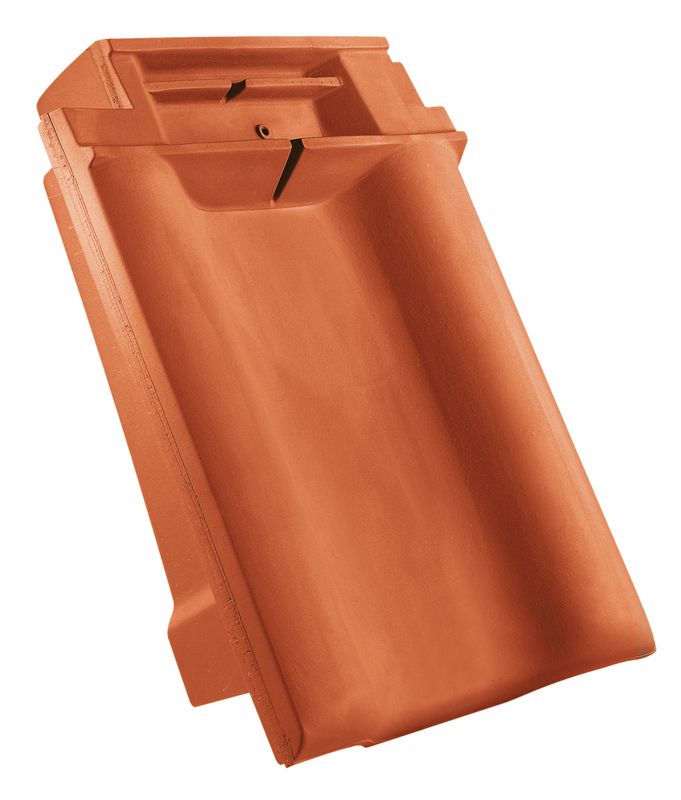

MAG ridge connection ventilating verge tile left

MAG ridge connection ventilating verge tile left

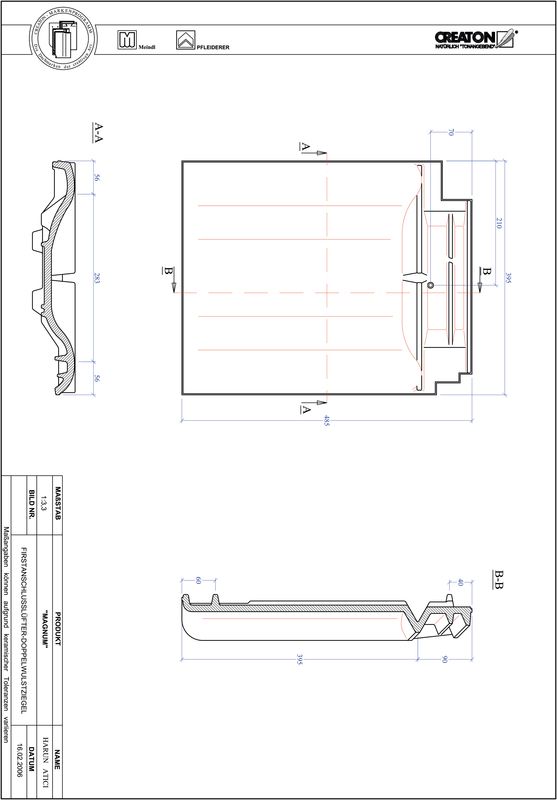

MAG ridge connection ventilating double roll tile

MAG ridge connection ventilating double roll tile

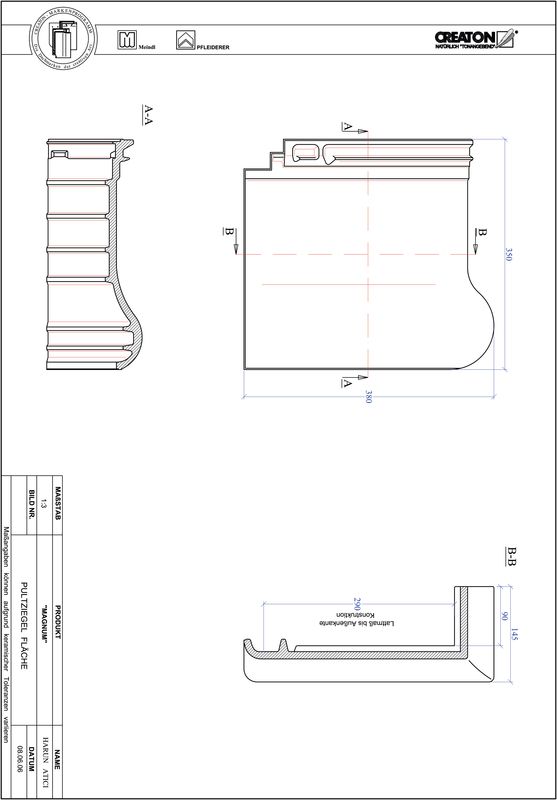

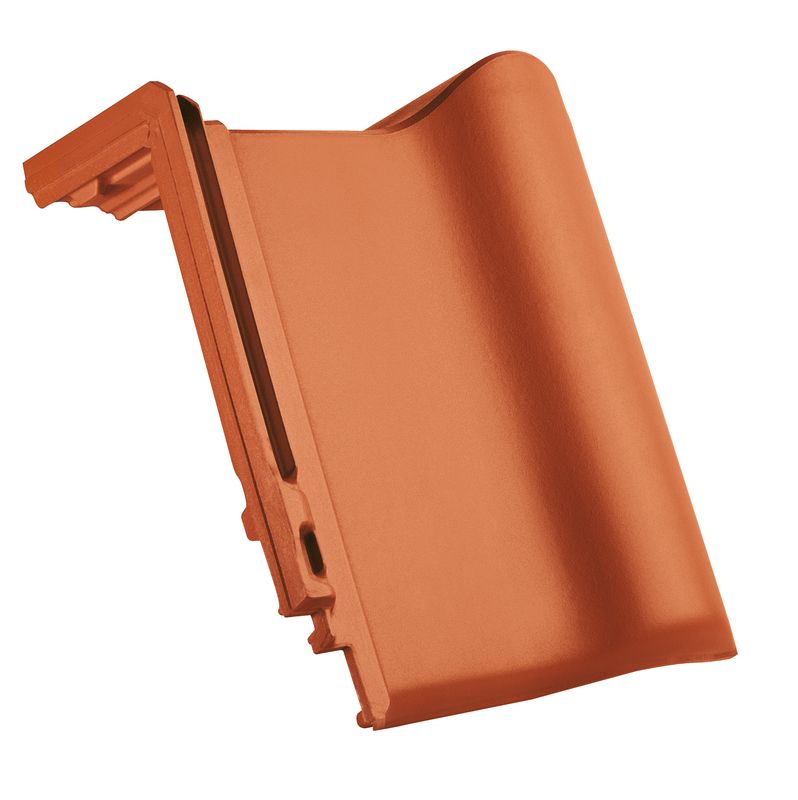

MAG shed roof tile decorated standard

MAG shed roof tile decorated standard

MAG shed roof verge tile decorated standard right

MAG shed roof verge tile decorated standard right

MAG shed roof verge tile decorated standard left

MAG shed roof verge tile decorated standard left

MAG shed half-width tile decorated standard

MAG shed half-width tile decorated standard

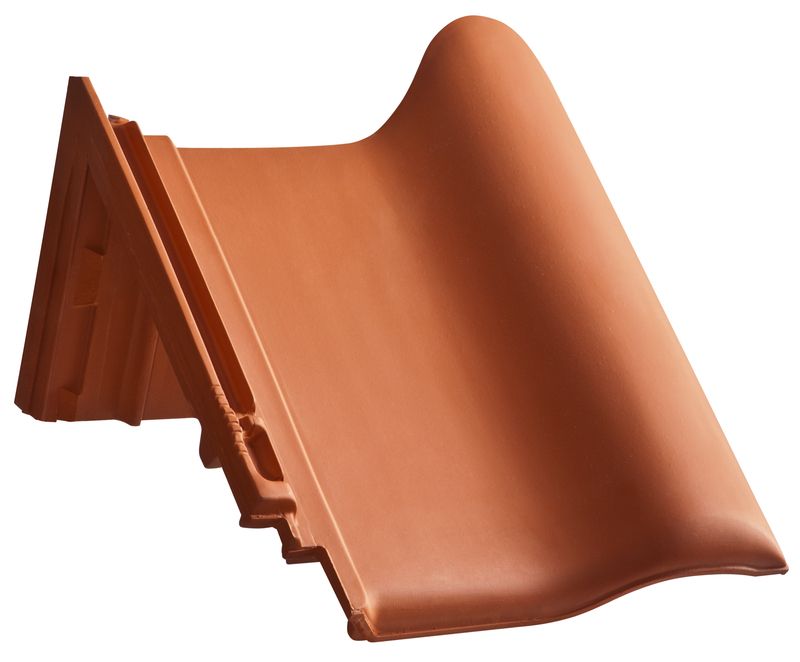

MAG shed roof tile decorated special size

MAG shed roof tile decorated special size

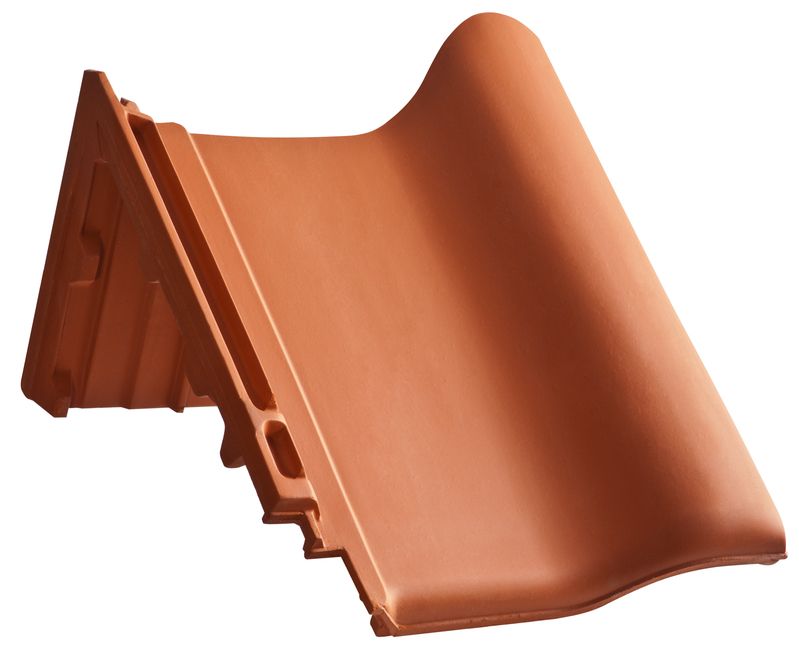

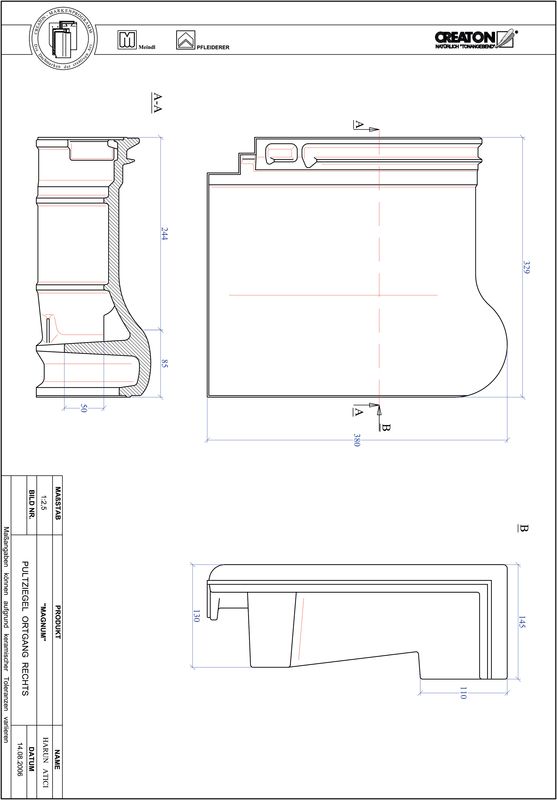

MAG shed roof verge tile decorated special size right

MAG shed roof verge tile decorated special size right

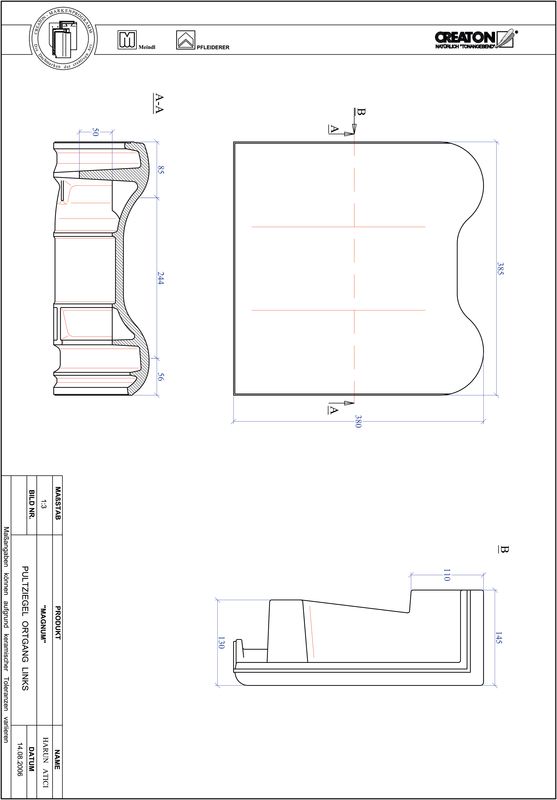

MAG shed roof verge tile decorated special size left

MAG shed roof verge tile decorated special size left

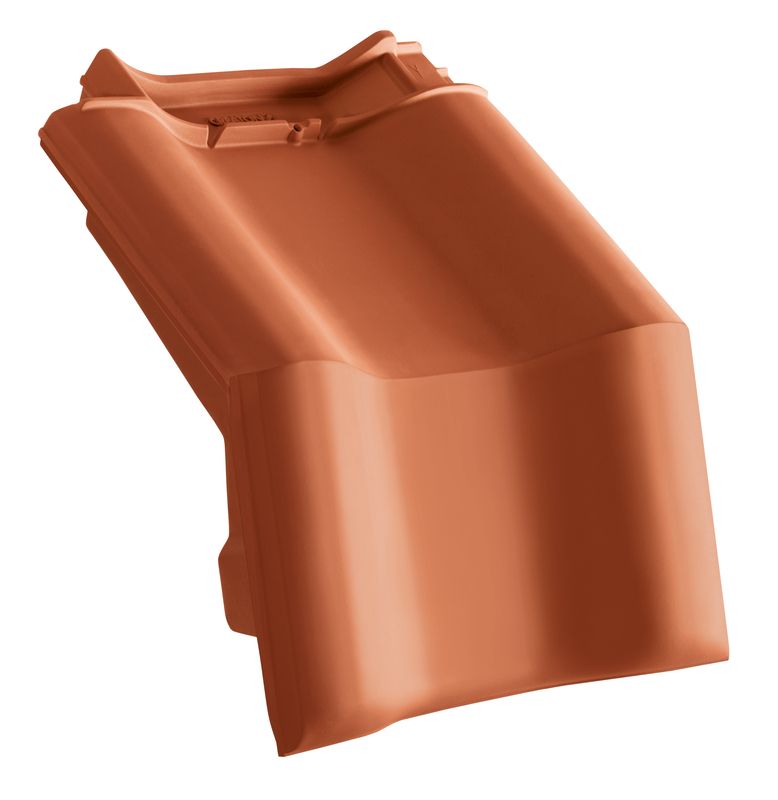

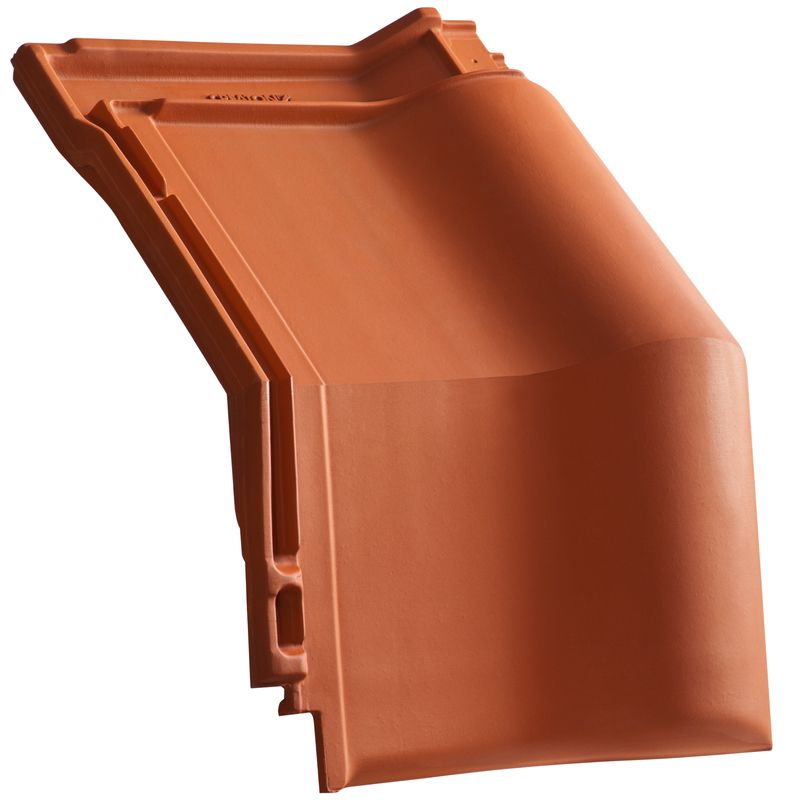

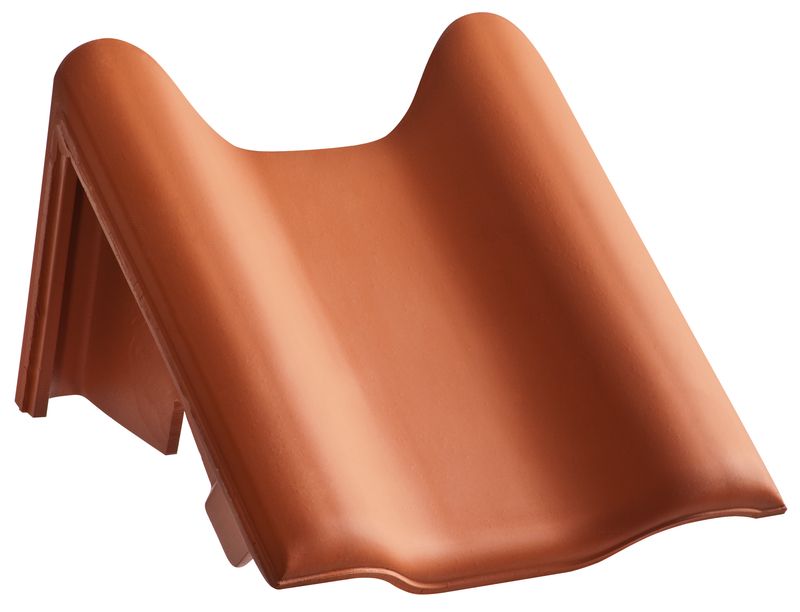

MAG mansard/pitch transition tile decorated special size

MAG mansard/pitch transition tile decorated special size

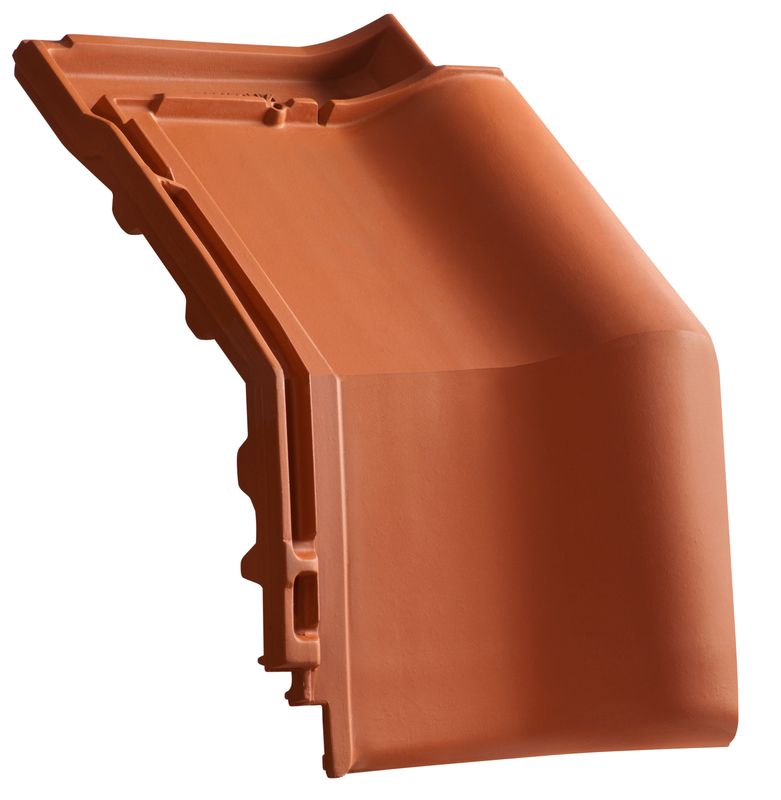

MAG mansard/pitch transition verge tile decorated special size right

MAG mansard/pitch transition verge tile decorated special size right

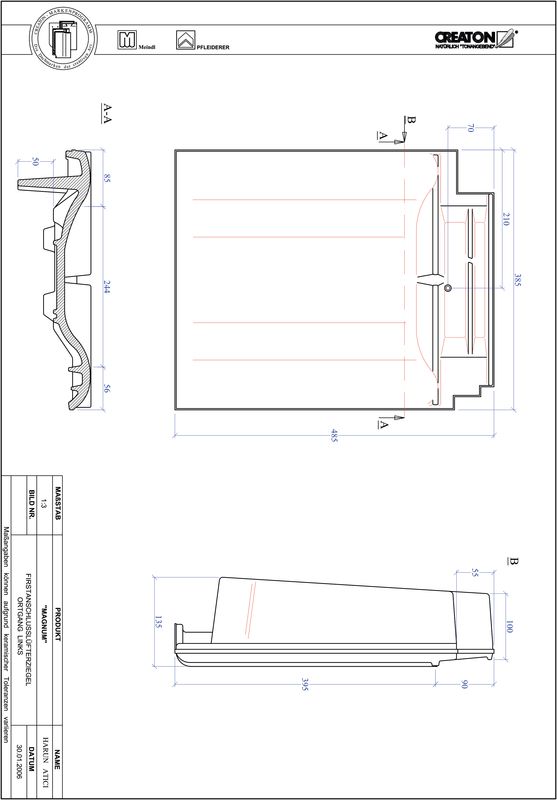

MAG mansard/pitch transition verge tile decorated special size left

MAG mansard/pitch transition verge tile decorated special size left

Ridge and hip tile product range

Ridge clip aluminium PF AUT

Ridge clip aluminium PF AUT

AUT vorst/nok PF

AUT vorst/nok PF

AUTvorst/nok begin- en eindschijf PF

AUTvorst/nok begin- en eindschijf PF

AUTvorst/nok begin- en eindschijf PF

AUTvorst/nok begin- en eindschijf PF

AUT hoekkeperbeginstuk PF

AUT hoekkeperbeginstuk PF

Hip starter ceramic round closure PF AUT (clay)

Hip starter ceramic round closure PF AUT (clay)

Hip starter ceramic with scallop PF AUT (clay)

Hip starter ceramic with scallop PF AUT (clay)

FIRSTFIX ridge clip stainless steel PF AUT

FIRSTFIX ridge clip stainless steel PF AUT

Ondernokrol 220 (CREAROLL ALU)

Ondernokrol 220 (CREAROLL ALU)

Ondernokrol 300 (CREAROLL ALU)

Ondernokrol 300 (CREAROLL ALU)

Ondernokrol 220 (CREAROLL PP)

Ondernokrol 220 (CREAROLL PP)

Ondernokrol 310 (CREAROLL PP)

Ondernokrol 310 (CREAROLL PP)

Ondernokrol 390 (CREAROLL PP)

Ondernokrol 390 (CREAROLL PP)

Product range for roof ventilation and penetrations

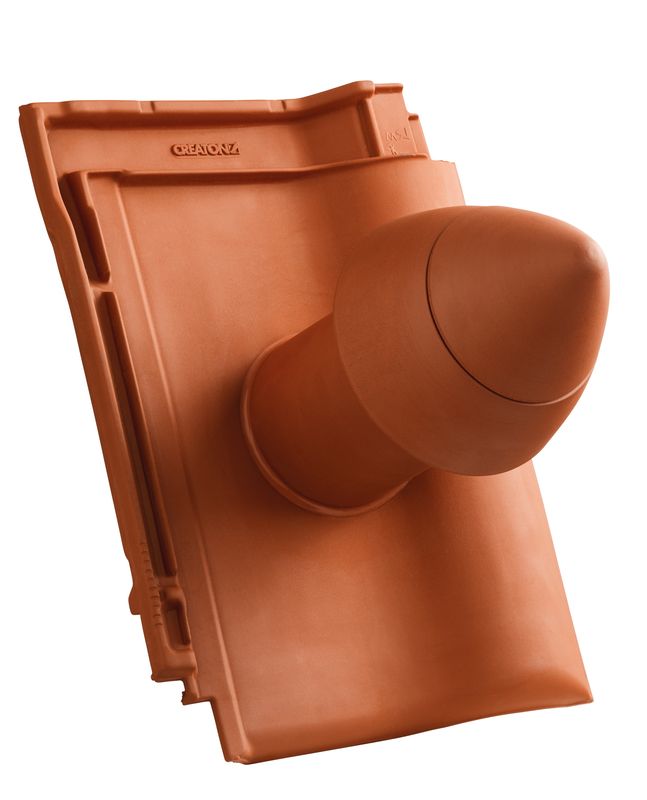

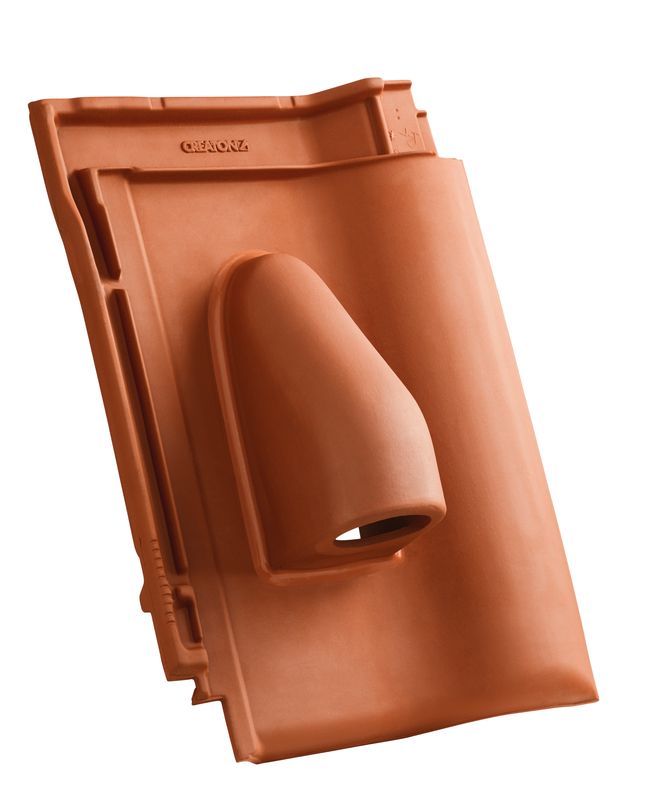

MAG SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

MAG SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

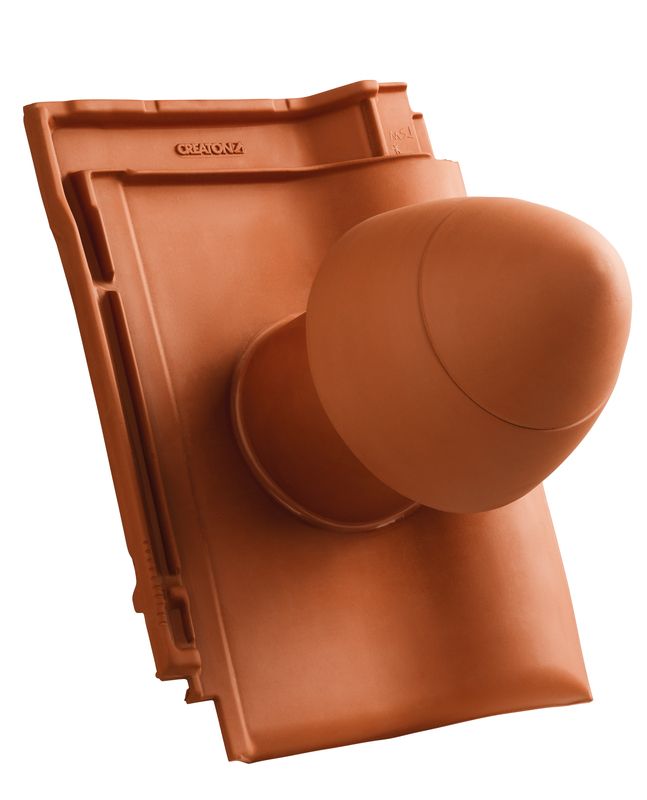

MAG SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

MAG SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

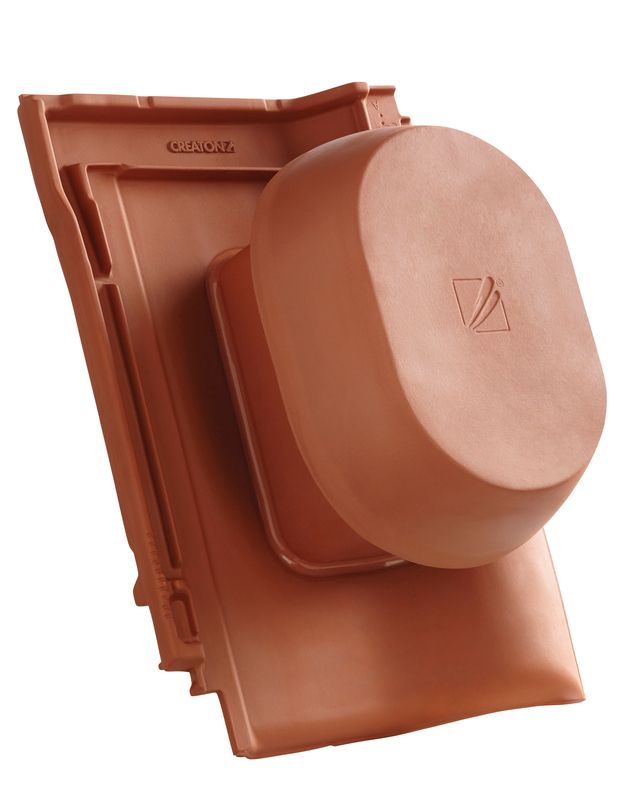

MAG SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

MAG SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

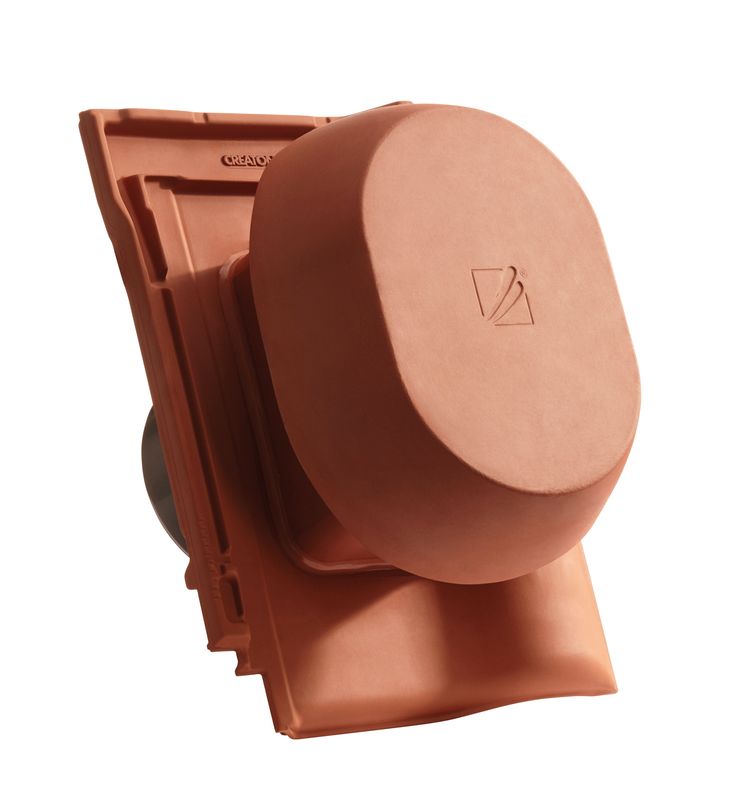

MAG SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

MAG SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

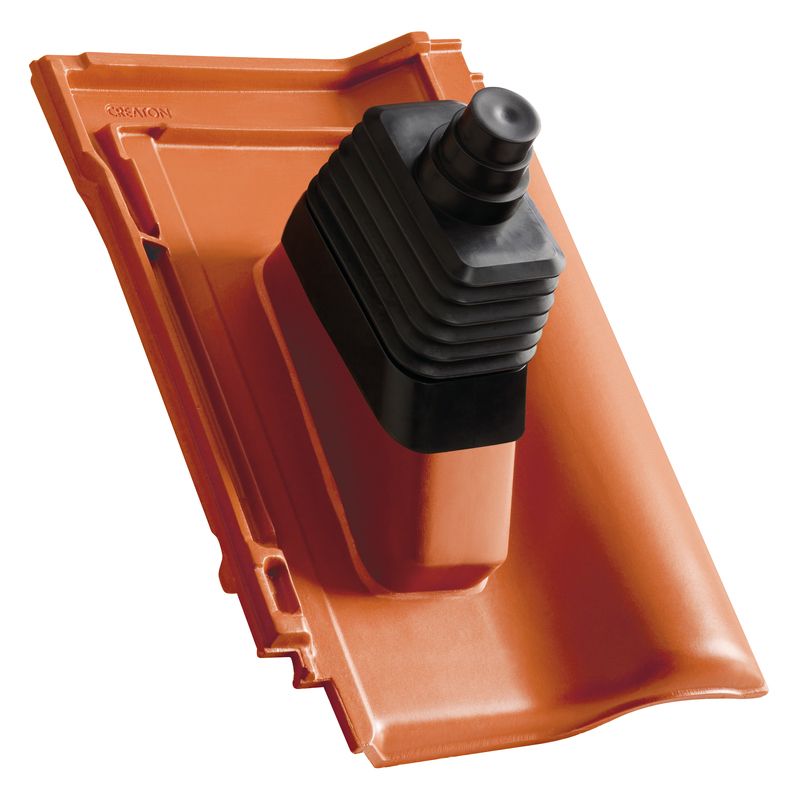

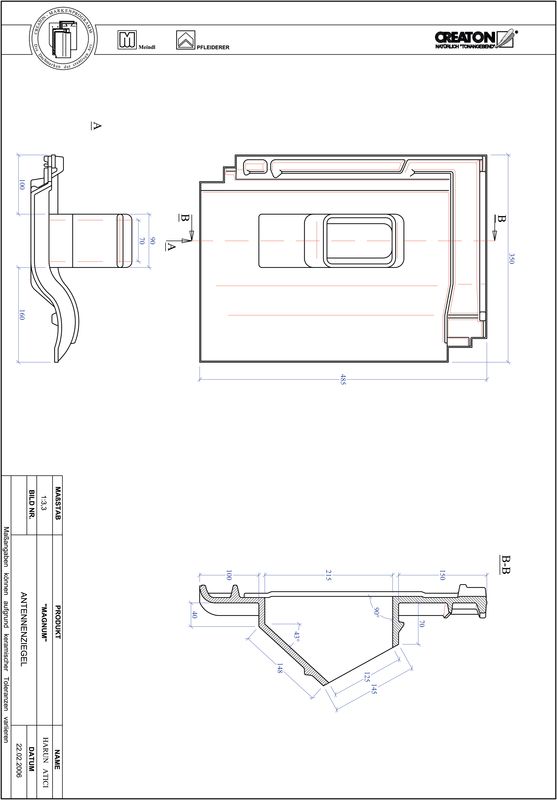

MAG aerial entry

MAG aerial entry

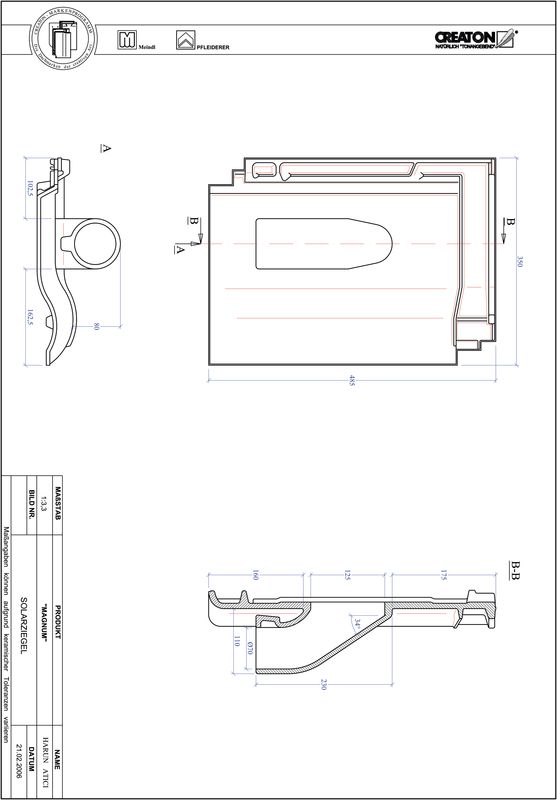

MAG solar entry tile

MAG solar entry tile

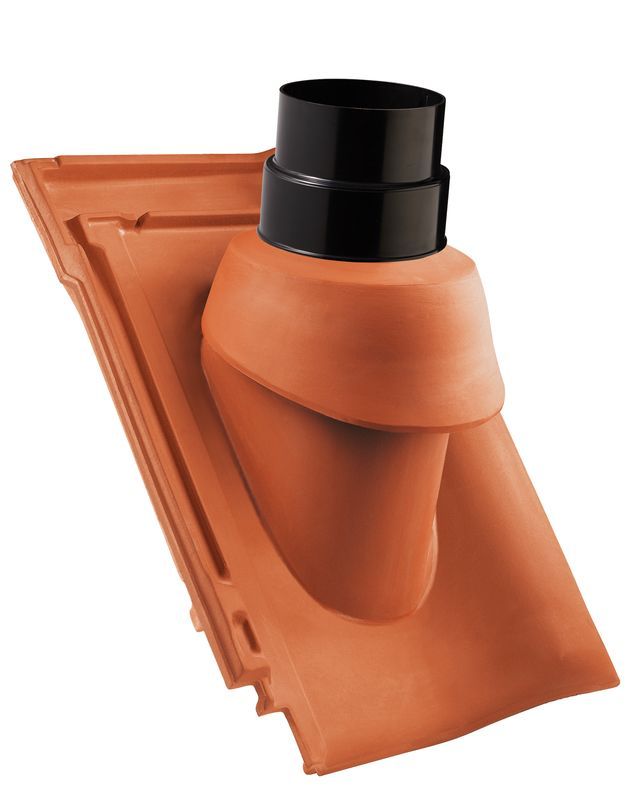

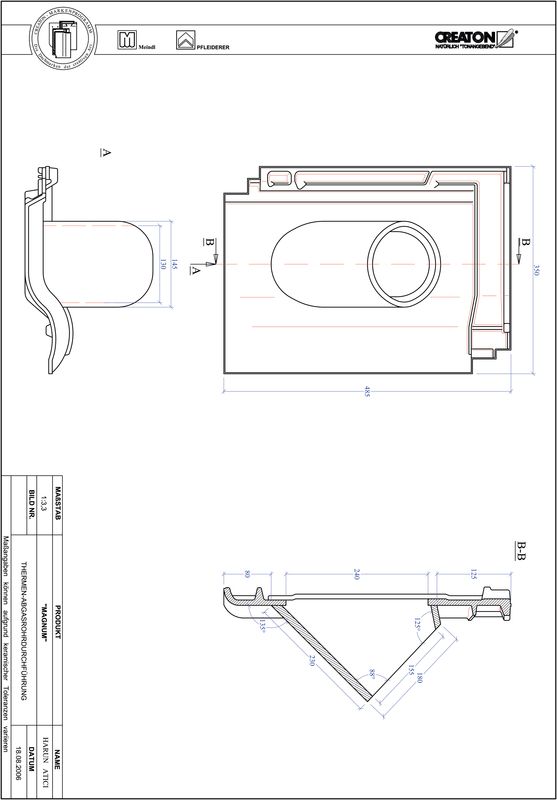

MAG flue pipe penetration NW 110/125

MAG flue pipe penetration NW 110/125

Verbindingsslang voor universele verluchtingspan DN 150/160

Verbindingsslang voor universele verluchtingspan DN 150/160

Verbindingsslang voor universele verluchtingspan DN 200

Verbindingsslang voor universele verluchtingspan DN 200

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 20

Universal sub-roof connection adapter NW 20

Verbindingsslang voor universele verluchtingspan DN 150/160

Verbindingsslang voor universele verluchtingspan DN 150/160

Product range for roof details and uplift protection

MAG transparent tile (acrylic)

MAG transparent tile (acrylic)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (MAG, FUT)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (MAG, FUT)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (MAG, FUT)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (MAG, FUT)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (BAL, PRE) and 40/50 battens (FUT, MAG)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (BAL, PRE) and 40/50 battens (FUT, MAG)

Panhaak (MAG, BAL, FUT, PRE)

Panhaak (MAG, BAL, FUT, PRE)

Ridge clip aluminium PDZ (universal shed fastening clip)

Ridge clip aluminium PDZ (universal shed fastening clip)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Verluchtingskam

Verluchtingskam

Verluchtingskam

Verluchtingskam

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Thermally-insulated roof access hatch 55 x 78 cm

Thermally-insulated roof access hatch 55 x 78 cm

Satellite and aerial mast galvanised or colour coated

Satellite and aerial mast galvanised or colour coated

Acrylic paints 250 ml AUT

Acrylic paints 250 ml AUT

Product range for snow protection, roof access and solar installation in metal

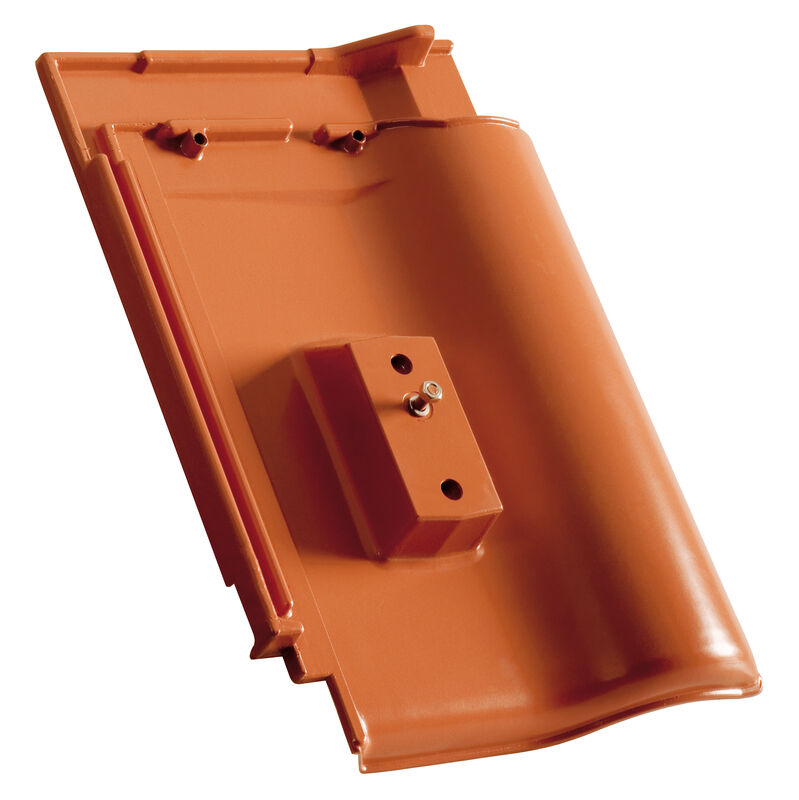

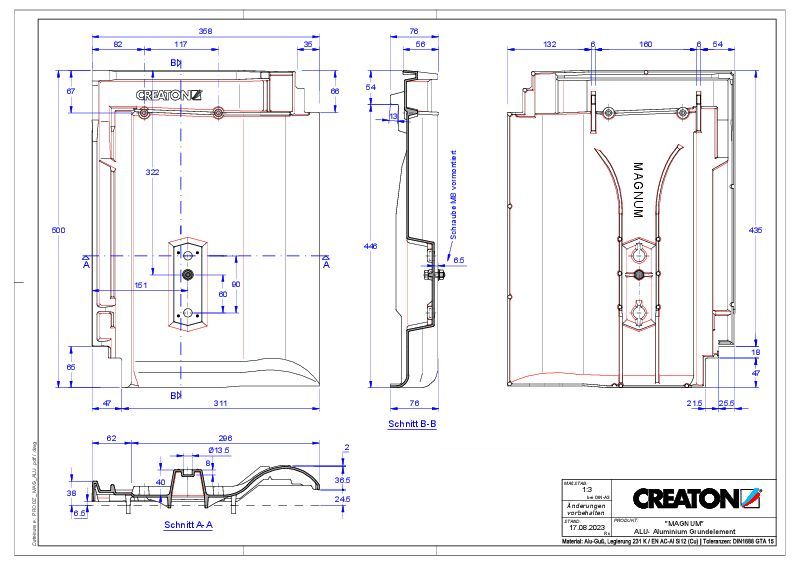

MAG aluminium base element

MAG aluminium base element

Solar element bracket GRUEL standard (clay)

Solar element bracket GRUEL standard (clay)

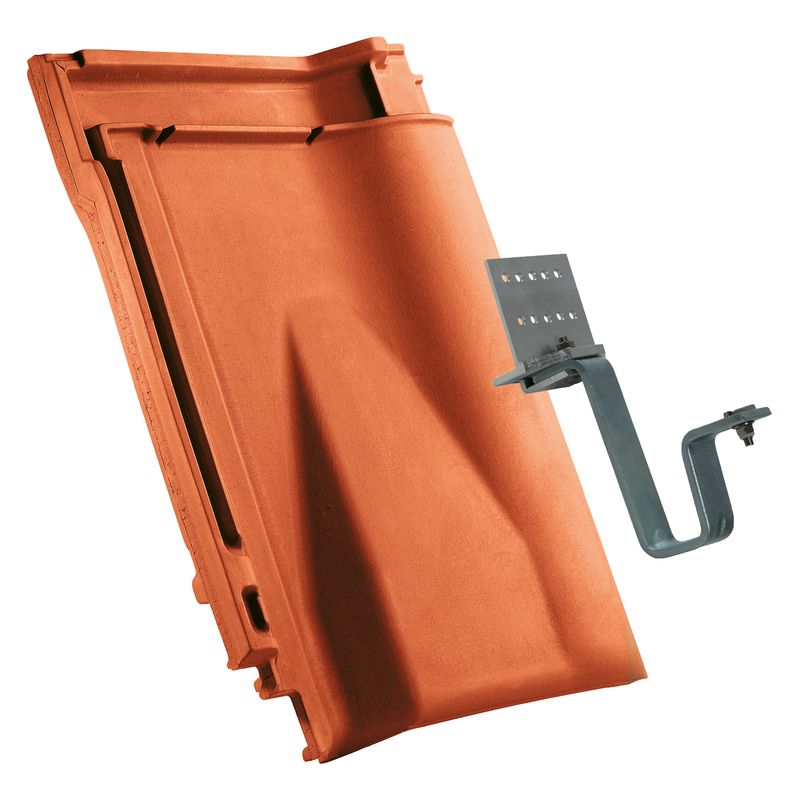

MAG solar system bracket kit for plank installation

MAG solar system bracket kit for plank installation

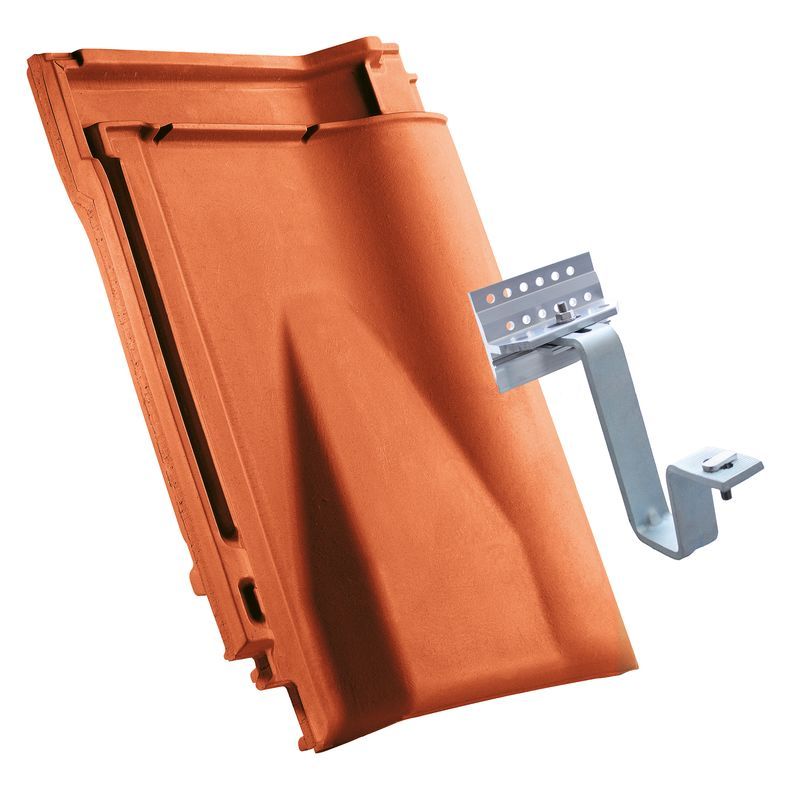

MAG solar system bracket kit for rafter installation

MAG solar system bracket kit for rafter installation

Mountain snow guard pipe support

Mountain snow guard pipe support

Mountain snow guard pipe Ø 40 mm, length 3 m

Mountain snow guard pipe Ø 40 mm, length 3 m

Universal mountain snow guard end caps

Universal mountain snow guard end caps

Roof ladder

Roof ladder

Roof ladder bracket

Roof ladder bracket

Grid tread aluminium 150 x 25 cm

Grid tread aluminium 150 x 25 cm

Snow guard grid solid 1.50 m

Snow guard grid solid 1.50 m

Connection sleeve for mountain snow guard pipe Ø 40 mm

Connection sleeve for mountain snow guard pipe Ø 40 mm
